Product Details
＋

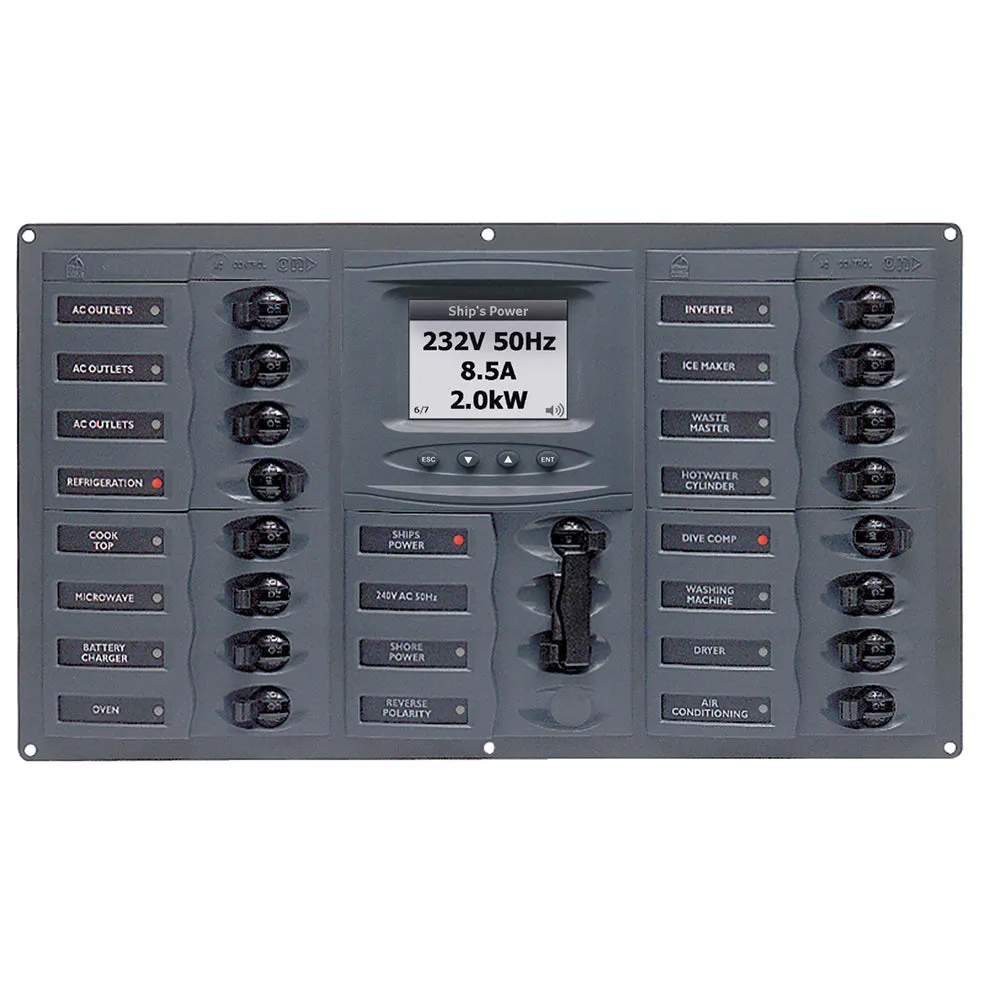

AC Circuit Breaker Panel with Digital Meters, 16SP 2DP AC120V ACSM Stainless Steel Horizontal
Features:
- Supplied with tranducer
- Reverse polarity indicator
- Double pole mains input CBs with side lockout
- Digital meter shows volts, amps and frequency
- LED wired to indicate live panel with mains breaker either on or off
- AC source selector ensures no cross over between AC inputs (ship or shore power)
Specifications:
- Total Positions: 16 Loads 2 Inputs
- Circuit Breakers: 5x 10A, 7x 15A, 2x 20A, 1x 25A, 1x 30A 1x 30A, 1x 80A
- Nominal Voltage: 110V AC
- Maximum Amperage: 80A
- Dimensions: 7.9" X 13.9" X 2.5"
- Neg Bus: IS-6MM-2
