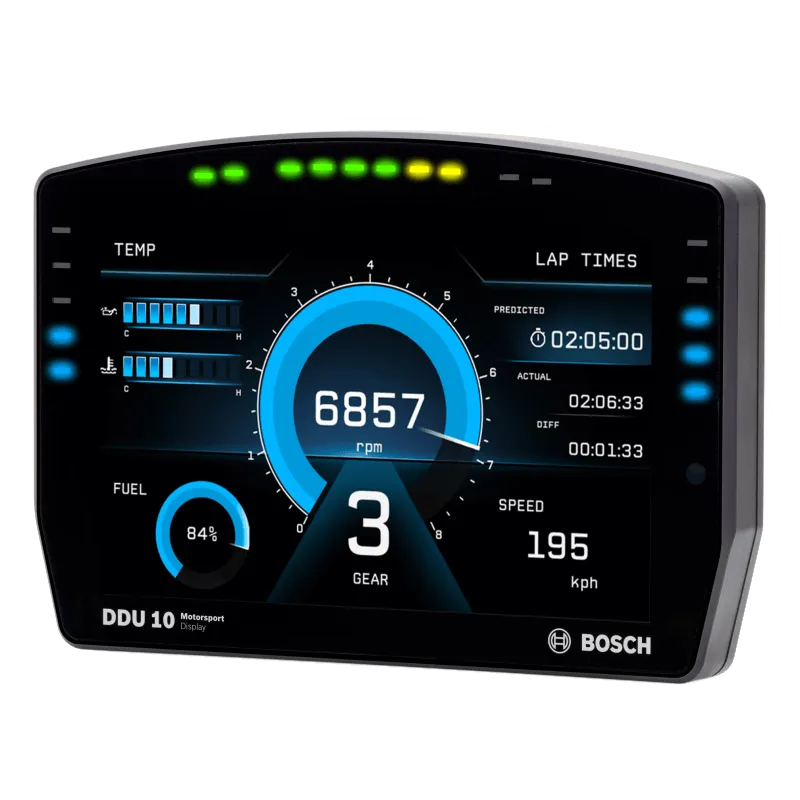

Offering a completely brand new library of graphic elements, the Bosch DDU 10 display is a fully customizable dashboard display and motorsport logging system, allowing the end user to design and customize the twelve different display pages. Additionally, a configurable input activates the menu structure and the user can reset for example lap time, fuel consumption and many more, without having to connect a laptop to the DDU.

Additional input devices can be connected via Ethernet, CAN buses and RS 232. A basic logging function of 100 channels with a recording of 50 ms (3 GB) is always included. The logger can be upgraded to full logging performance (max. 1 ms). In addition a 2nd logging partition of 1 GB can be activated. For quick data transfer from the car, e.g. during pit stop, data copy to a USB stick is available as an option.

Data Analysis Software WinDarab is available free of charge as “WinDarab V7 free” on our website.

• Features new user interface menu

• All new display element design generator

• 10 additional LEDs on both sides of the device

• Supports GPS lap trigger, pre-dated lap time etc.

• Page change based on events possible

Upgrades:
s

Please for further information.

Bosch Part Number: F02U.V02.659-01
