• Cutting-edge 667 MHz Dual Core Processor

• Large trans-reflective color display

• Recording on USB flash drive (opt.)

• Supports GPS lap trigger, pre-dated lap time etc

• Page change based on events possible

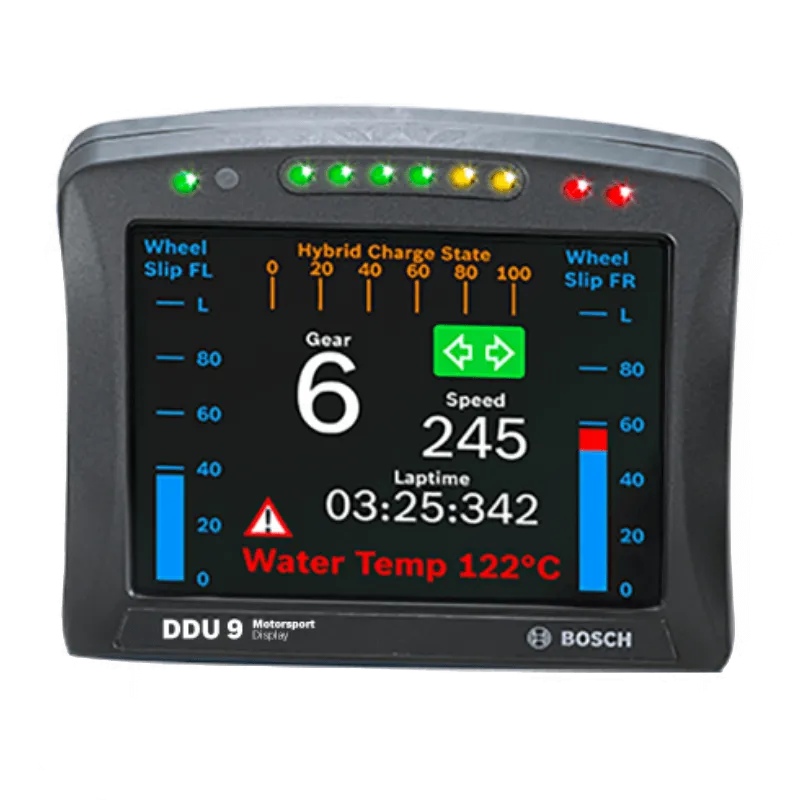

The display DDU 9 integrates a programmable full-color dashboard display with a data logging system for motorsport applications for a very competitive price. Additional input devices can be connected via Ethernet and CAN buses.

Data Analysis Software WinDarab is available free of charge as “WinDarab V7 free” on our website. A basic logging function of 100 channels with a recording of 50 ms (3 GB) is always included. The logger can be upgraded to full logging performance (max. 1 ms). In addition, a 2nd logging partition of 1 GB (e.g. for long-term recording) can be activated.

Customers can implement own graphics, pictures etc. on the 12 freely configurable display pages. For quick data transfer from the car e.g. during pit-stop, data copy to a USB stick is available as an option. The stick is connected to the wiring harness for the DDU 9. The device comes with 4 analog and 4 speed inputs as standard; further 12 analogue inputs are available as an optional upgrade.

Please for further information.
