Name: GentleTyphoon 120x120x25mm Silent Case Fan Series D1225C12B
SKU: 1654183

Product Details ＋

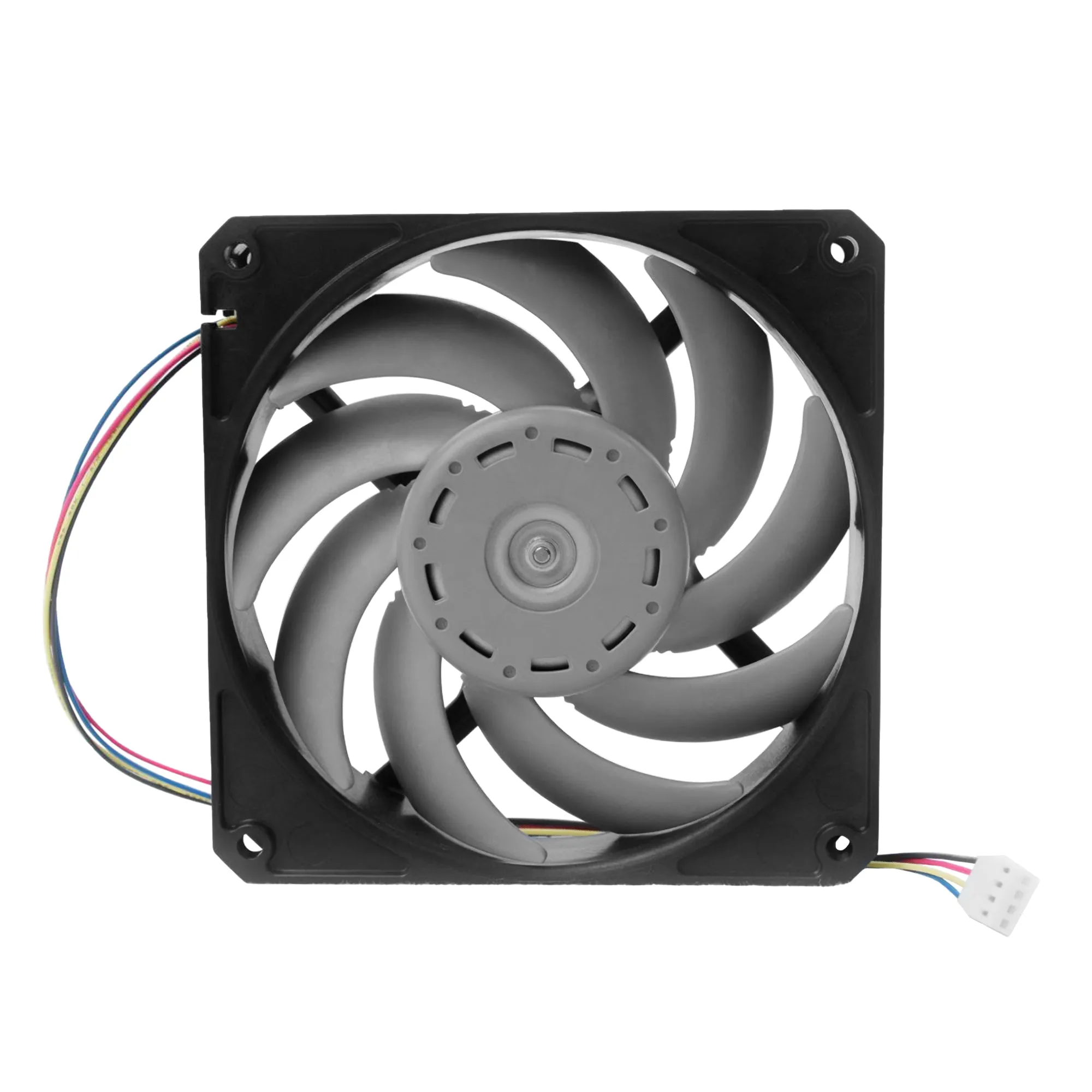

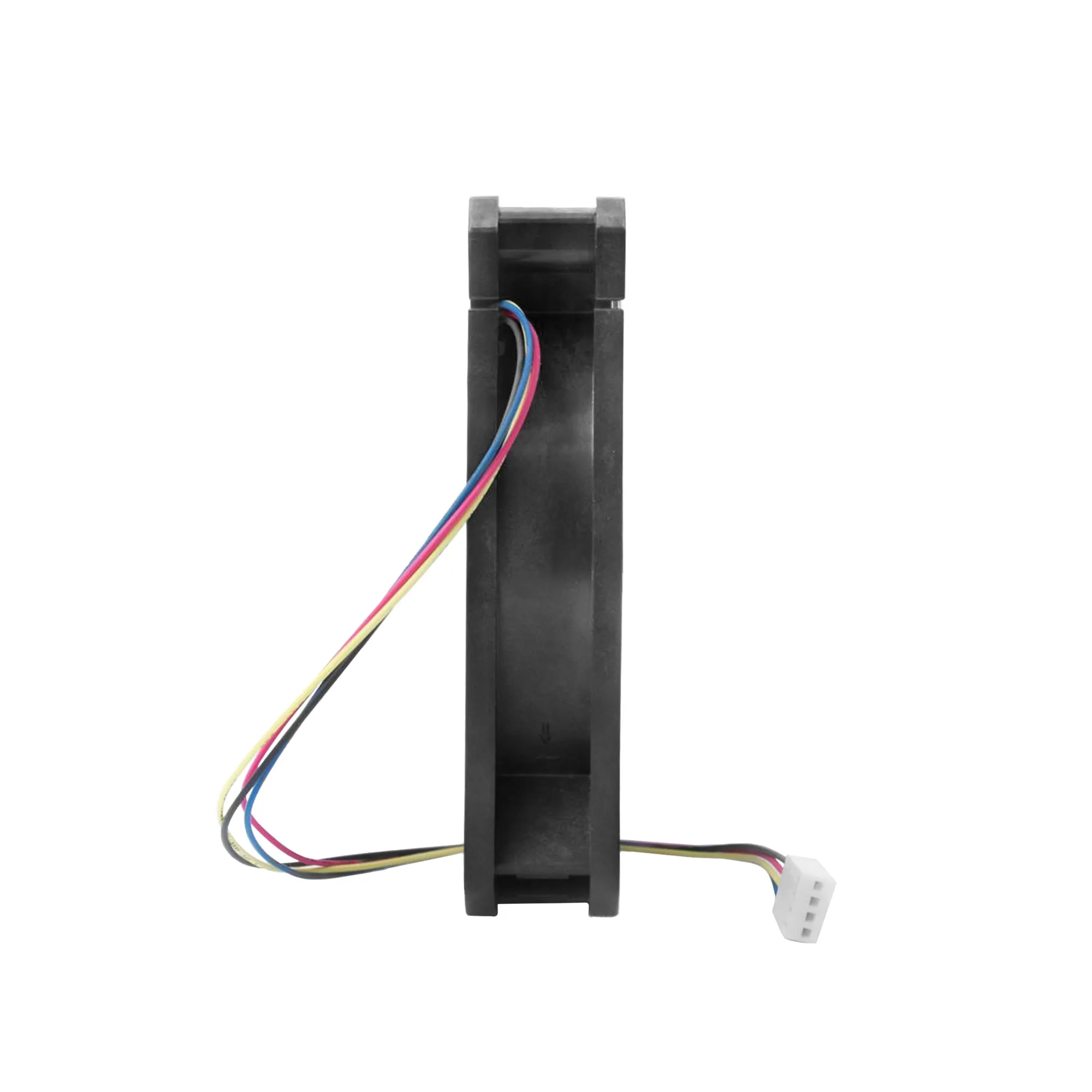

GentleTyphoon 120x120x25mm Silent Case Fan Series D1225C12B

1450 RPM 894092001638 / 1850 RPM 894092001645 / 2150 RPM 840556104087

1450 RPM (Discontinued): D1225C12B4A-52 is the OEM variant of the D1225C12B4AP-14
1850 RPM (Discontinued): D1225C12B5AP-53 is the OEM variant of the D1225C12B5AP-15
2150 RPM: D1225C12B6ZPAA6 this is a 4 Pin PWM model

OEM = Original equipment manufacturer, no accessories or retail packaging included.

The Gentle Typhoon adopts a completely new idea which undermines conventional fan design. Reduce fan noise by reducing the RPM of the fan (This is due to the fact that noise varies in proportion to revolutions to the power of six.) NIDEC SERVO engineers denied common sense during the development of the Gentle Typhoon, and applied their own modified version of a fluid dynamic analysis software to verify a multitude of design parameters. We found that noise could be lowered even at higher speeds as long as the propeller and fan case (venturi) were formed with some ingenuity. The ingenuity resulted in a wonderful invention encompassing three (two?) factors essential to a low noise fan: a wide low-noise range and improved noise quality (patent pending). Compared to the common axial fan, not only will it revolve 15% faster but customers can expect marked reduction to system noise.

High Performance paired with low Noise Level - that's what the new GentleTyphoon Fans by Nidec Servo Corp. are about.

This is a great computer fan, and also works very well for quiet AV cooling. We have these fans incorporated into some of our cabinet cooling solutions.

High Performance:
The Gentle Typhoon achieves high airflow volume and low noise with the newly designed impeller, enabling silent cooling of the latest devices which run very hot.

Silent Operation:
The GentleTyphoon has a different type of tone. The fan propeller is designed to reduce the disturbing frequency fan noise to human ears.

Innovative Technology:
The newly designed motor and motor support mechanism of the GentleTyphoon uses a double vibration reduction structure. The new support mechanism uses coil dampers to greatly reduce vibration.

For further information regarding Nidec Servo Corporation, please visit their website at:

PRODUCT SPECIFICATIONS: (1450 RPM) (Discontinued)
Model No: D1225C12B4AP-52
Fan Speed: 1450 RPM
Fan Noise: 21 DBA
Air Flow: 45.9 CFM
Power Draw: 0.049 A
Connector: 3 Pin 3 Wire
Bearing: Dual Ball

PRODUCT SPECIFICATIONS: (1850 RPM) (Discontinued)

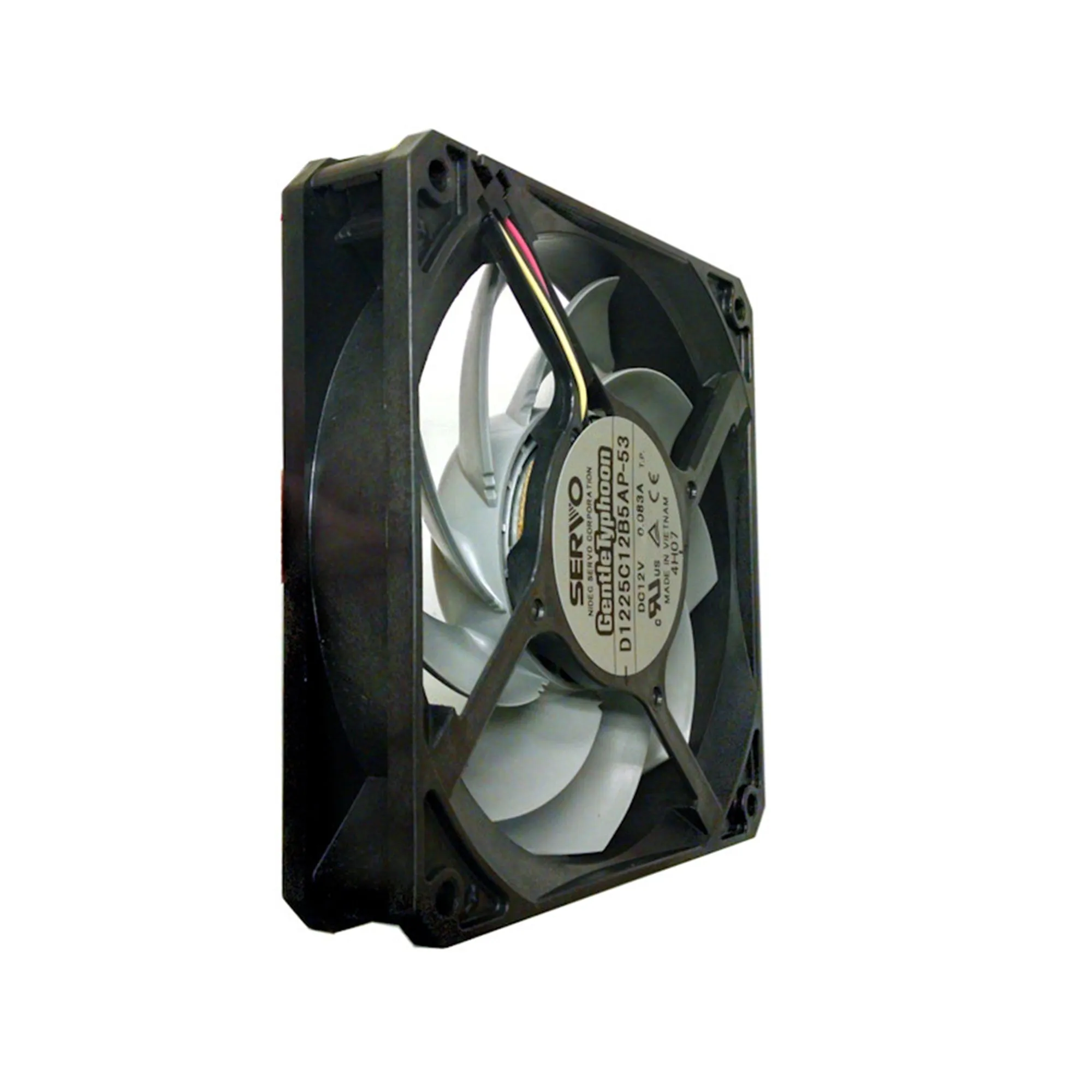

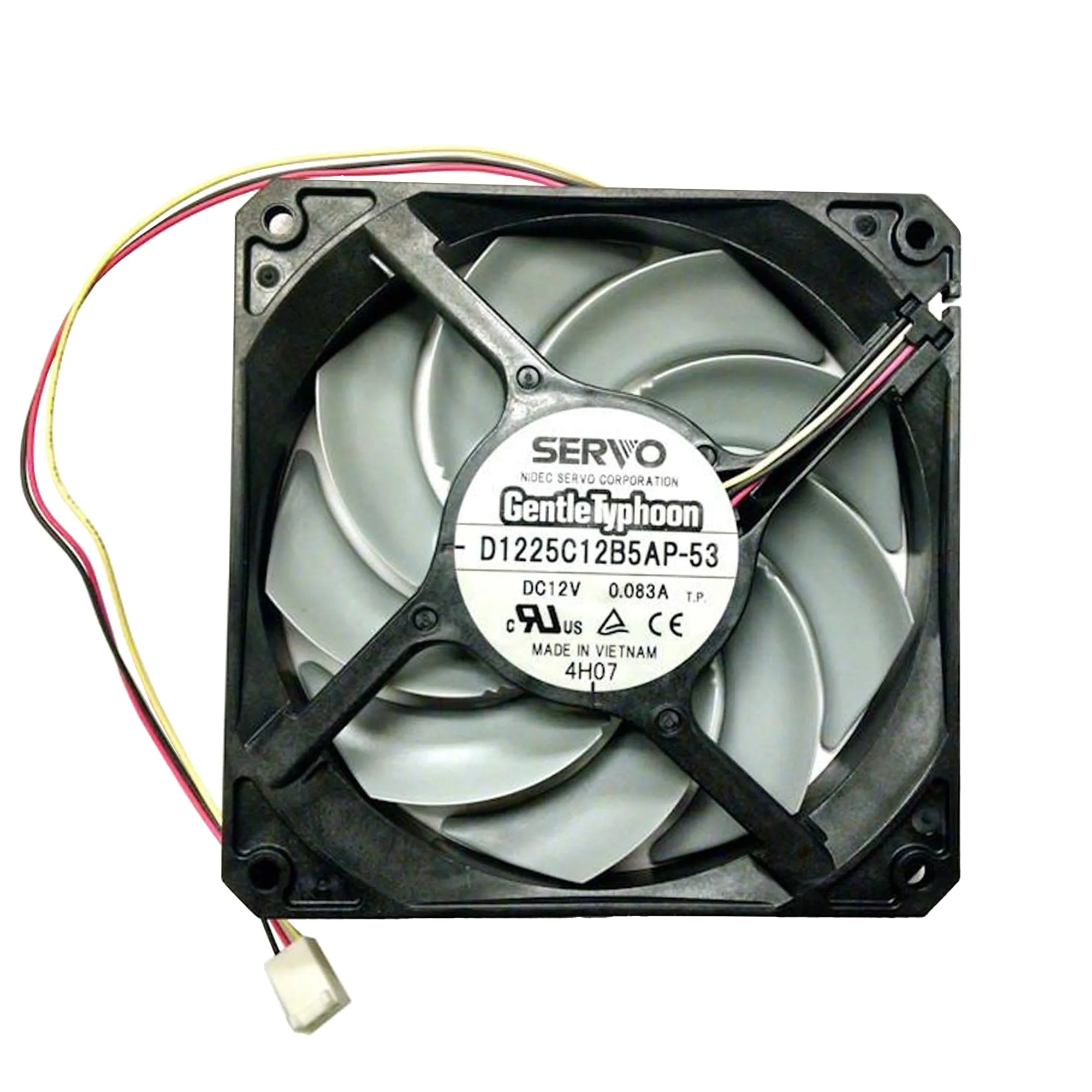

Model No: D1225C12B5AP-53
Fan Speed: 1850 RPM
Fan Noise: 28 DBA
Air Flow: 58.3 CFM
Power Draw: 0.083 A
Connector: 3 Pin 3 Wire
Bearing: Dual Ball

PRODUCT SPECIFICATIONS: (2150 RPM)

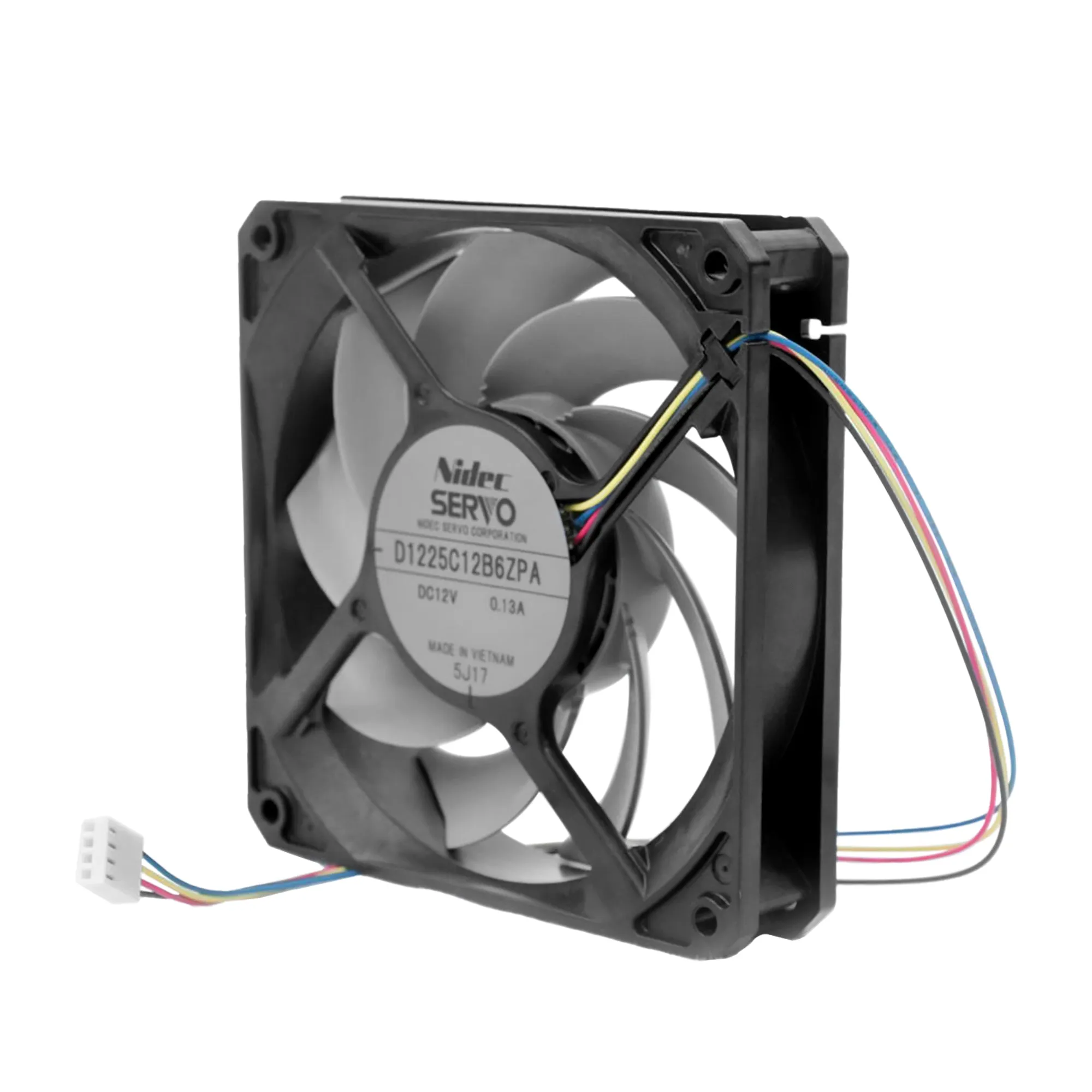

Model No: D1225C12B6ZPAA6
Fan Speed: 900-2150 RPM
Fan Noise: 15-32 DBA
Air Flow: 68 CFM
Power Draw: 0.13-0.23 A
Connector: PWM model
Bearing: Dual Ball

GentleTyphoon 120x120x25mm Silent Case Fan Series D1225C12B
