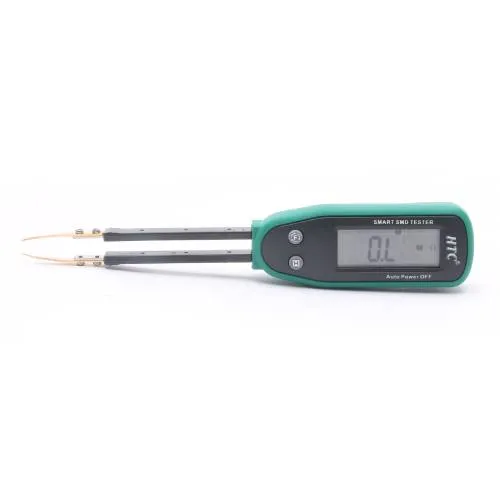

The HTC 3nf-30mf 2mA SMD Tester is an accurate and portable tool designed for professionals who need precise measurement of capacitance and resistance in surface mount devices (SMDs). This lightweight and compact tester simplifies measuring small electronic components, making it essential for engineers, technicians, and electronics enthusiasts working with modern electronics. With a wide capacitance and resistance range, along with additional features like a diode test, it offers versatility and efficiency in a single, convenient tool.

Key Features

• Capacitance Measurement Range: 3nF to 30mF, with resolutions as low as 1pF, delivering high accuracy for detailed component analysis.
• Resistance Measurement Range: 300Ω to 30MΩ, with fine resolution for precise resistance testing.
• Diode Test Function: Supports diode testing with an open voltage of 2.8V and 2mA current.
• Auto Power Off: Extends battery life by automatically powering off when not in use.
• Continuity Check with Buzzer: Audible buzzer activates when resistance is under 30Ω, aiding in quick continuity testing.
• Low Battery Indicator: Alerts users to replace the battery, ensuring consistent performance.

Specifications

• Capacitance Range: 3nF to 30mF
• Accuracy: ±2.5% for 3nF to 30nF, ±3% for 300nF to 30mF
• Resistance Range: 300Ω to 30MΩ
• Accuracy: ±1% for 300Ω to 3MΩ, ±1.2% for 30MΩ
• Diode Test Voltage: 2.8V with a test current of 2mA
• Dimensions: 170mm x 31mm x 17mm

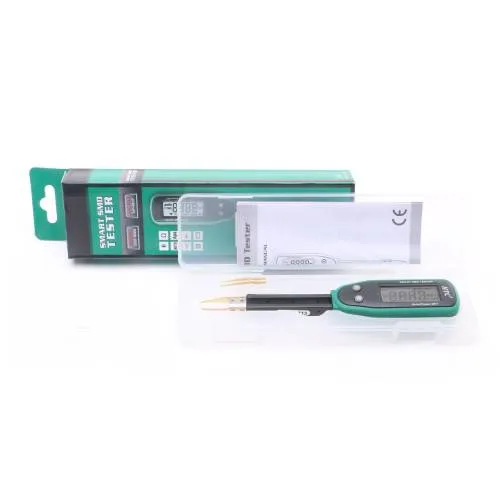

Box Includes

• HTC 3nf-30mf 2mA SMD Tester Unit
• Hard carrying case
• User manual
