| Product Attribute | Attribute Value |
|---|---|
| Mounting Type | DIN Rail Mount |
| Output Current | 5 A |
| Output Voltage | 24 VDC |
| Series | |
| Supply Voltage | 24 VDC |
| Type | Industrial, Network |
| UPC Code | 4055626171241 |
Overview

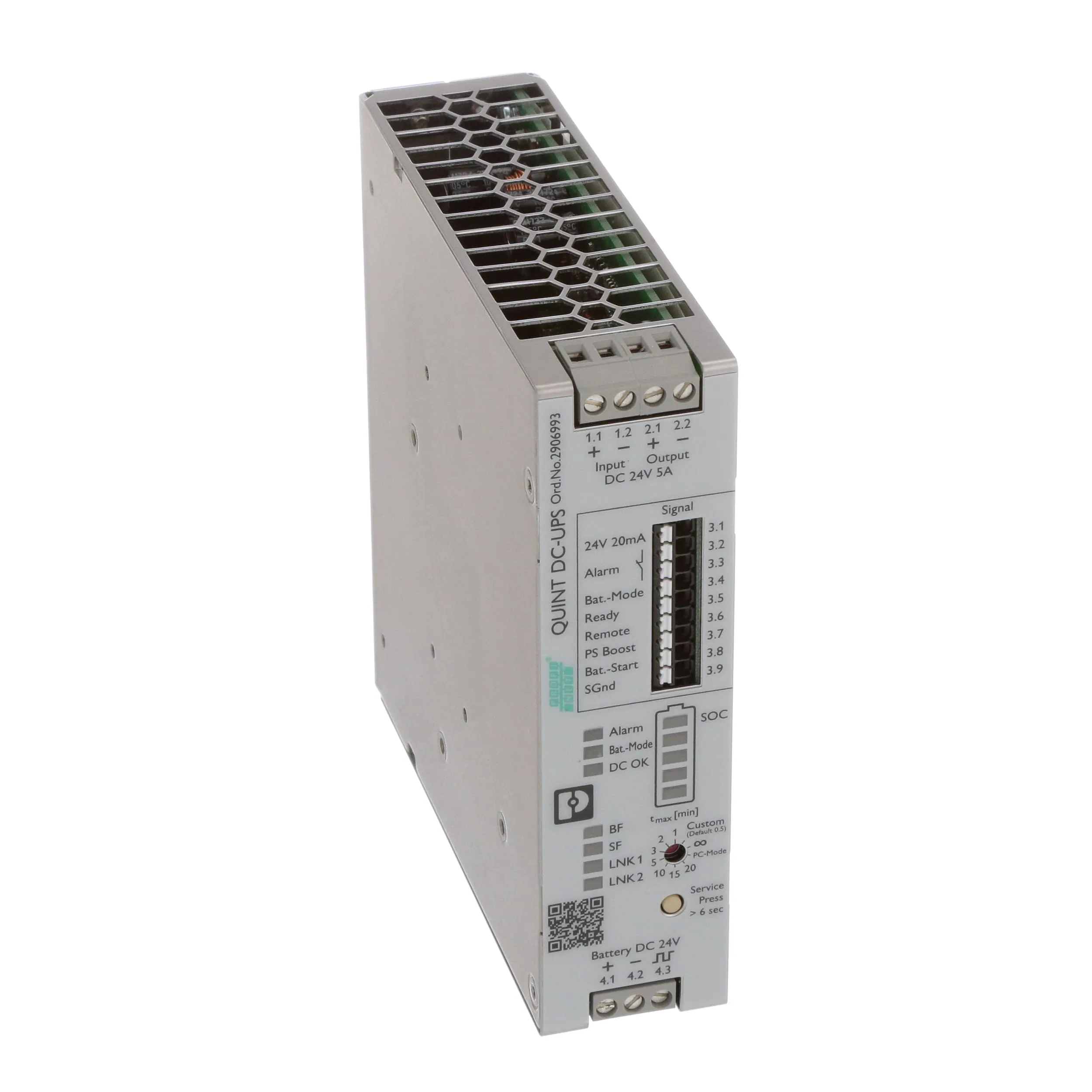

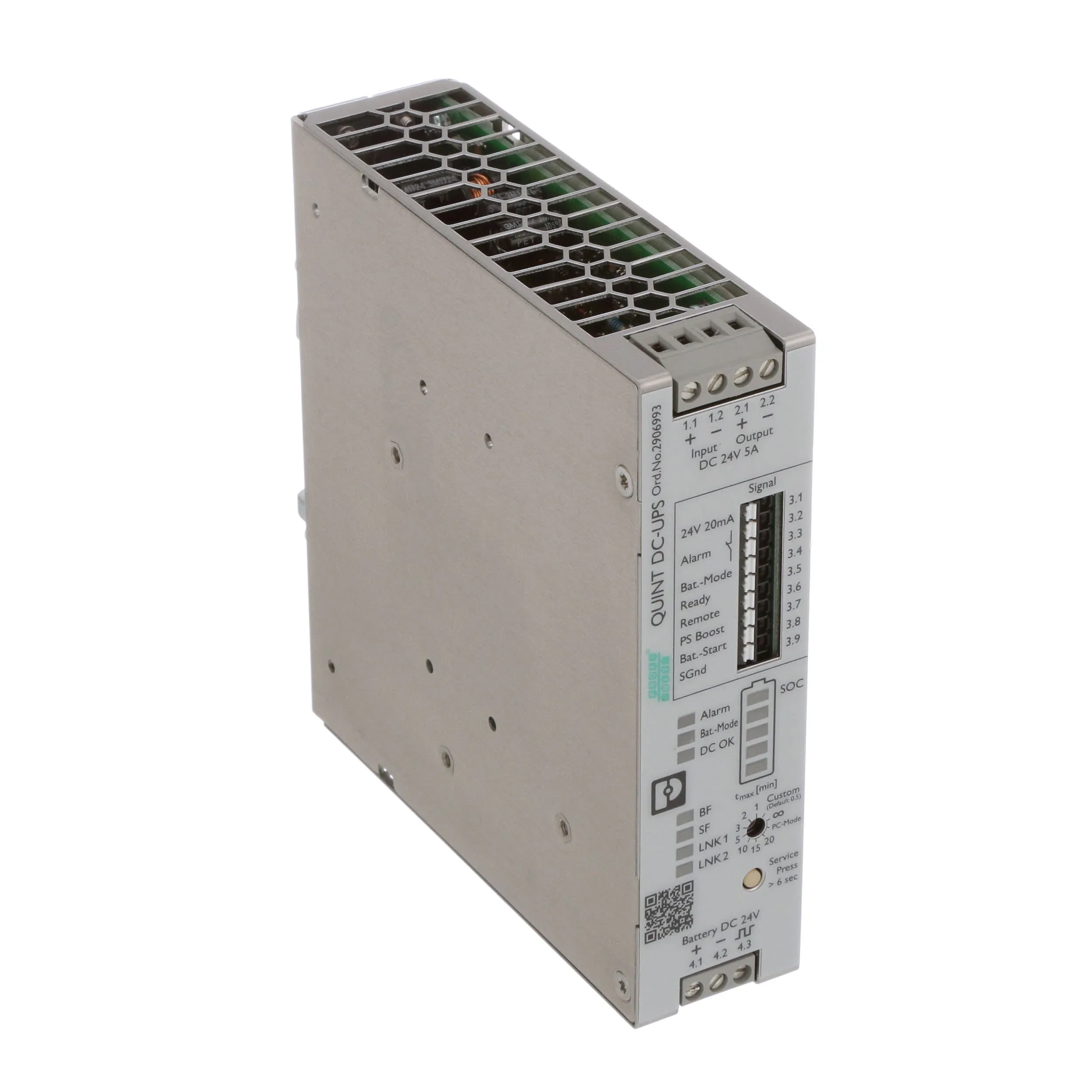

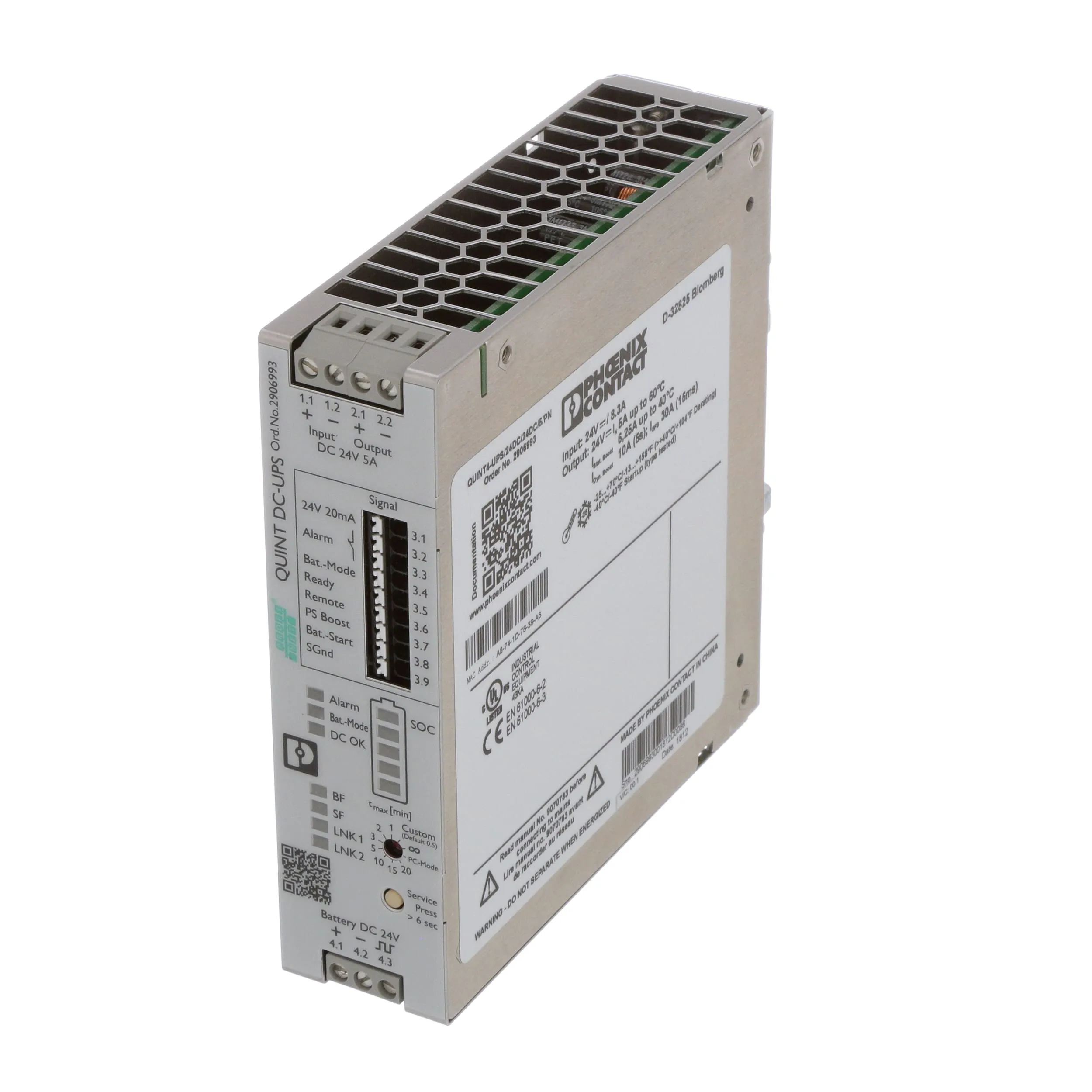

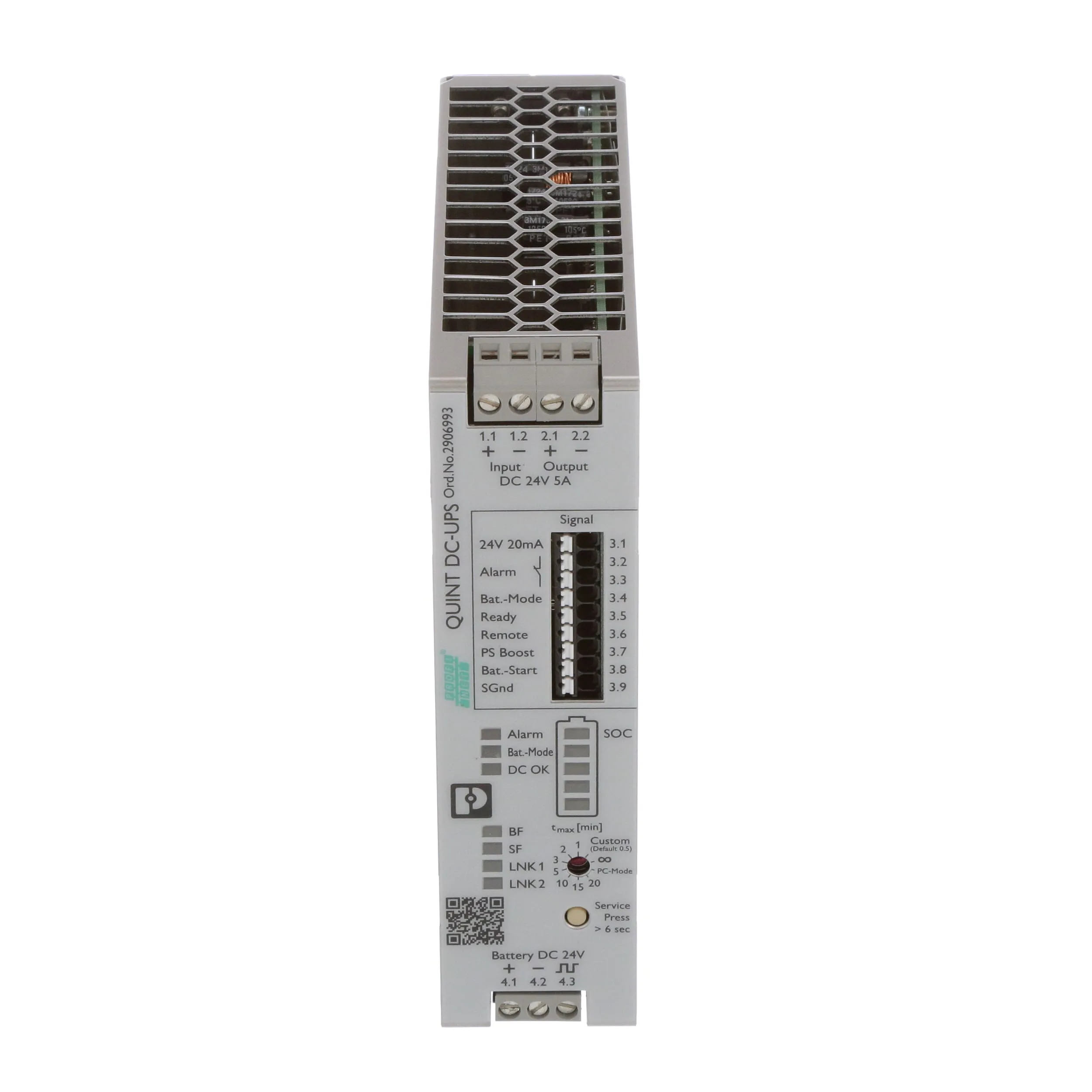

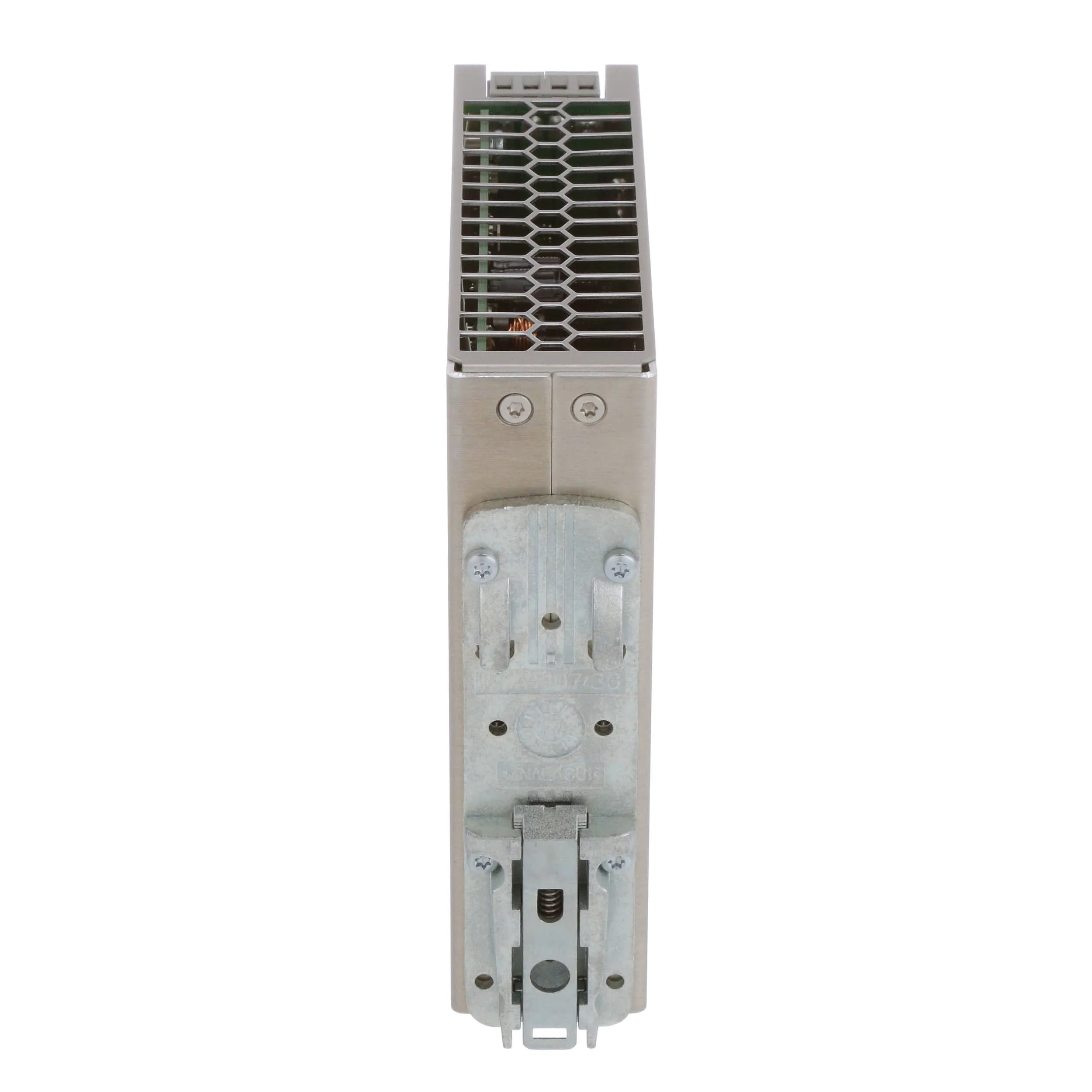

Phoenix Contact QUINT DC-UPS Series - Uninterruptible Power Supplies with IQ Technology:
The intelligent QUINT UPS for integration into established industrial networks: your systems continue to be supplied with uninterrupted power, even in the event of a mains failure. The battery management system with IQ Technology and a powerful battery charger ensures superior system availability. The QUINT DC UPS is an intelligent modular solution that provides critical system-backup voltage to supply loads in the event of mains failure and indicates the operating and battery state. The battery management system (BMS) with IQ technology and a powerful battery charger ensures power reliability within a control system. Device variants are each available with industrial Ethernet network interfaces (EtherNet/IPTM, PROFINET, EtherCAT®) and USB or simply status contacts only. Networking enables the system to be monitored, congured, or shut down in a safe manner from any location.
Features:
Communication interfaces:
- Supports 1x USB with Modbus/RTU, 2x RJ45 with PROFINET, EtherNet/IP™ or EtherCAT® protocol
- Integrated 2-port switch (daisy chain)
Applications:
