Ultra wideband antenna. Further development of the OmniLOG 90200 with an extended frequency range of 680MHz - 6GHz.

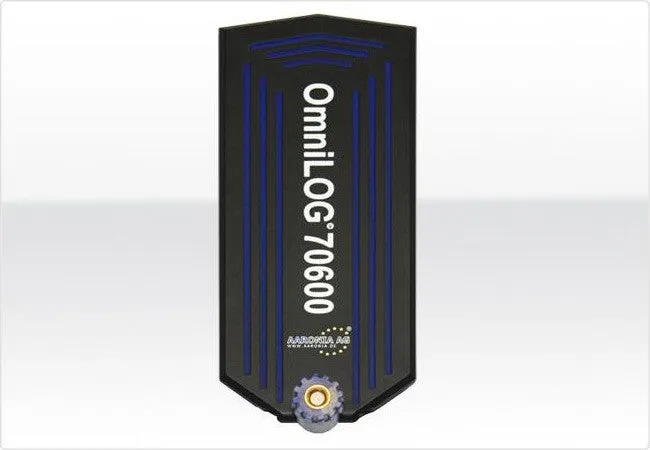

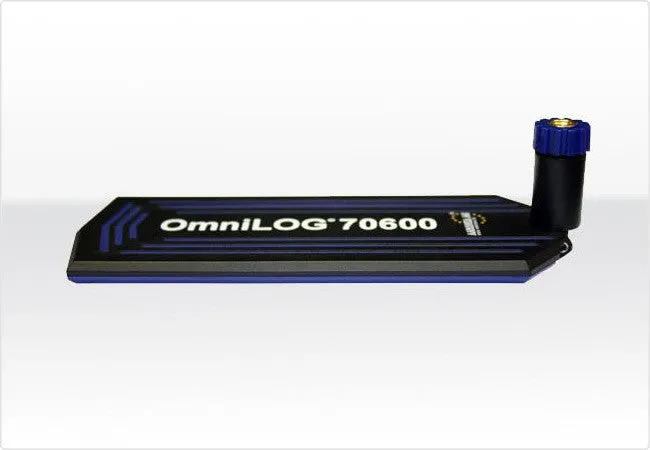

The omnidirectional broadband antenna OmniLOG® 70600 was specially developed for a quasi-isotropic (radially isotropic) measurement in mobile communications (GSM, UMTS, LTE) and WLAN frequency ranges (2.4 & 5-6GHz). It is the perfect addition to the SPECTRAN Spectrum Analyzers.
Compared to our HyperLOG antennas, the direct, radial field strength can be measured with the OmniLOG antenna without having to align the antenna. In this way, the field strength can be determined practically immediately.
The Aaronia PC analysis software "MCS" supports the use of the OmniLOG 70600 as a broadband antenna. Therefore, the antenna can even be used here with the SPECTRAN measuring devices of the V3 series with the full bandwidth.
In contrast to the HyperLOG antennas, their extremely small dimensions predestine them for inconspicuous or covert measurements.

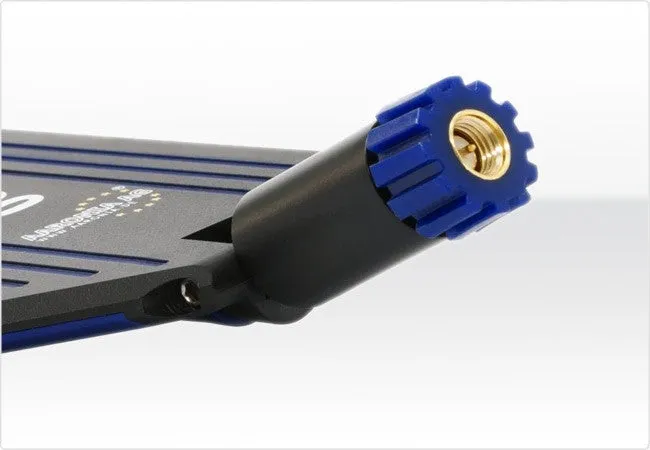

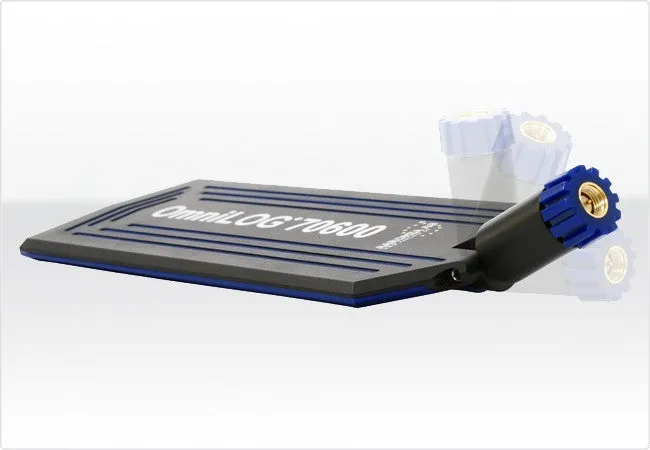

The OmniLOG antenna has a high-quality SMA connector and can therefore be connected immediately to SPECTRAN measuring devices.

Specifications:
• Frequency range: 680MHz - 6GHz
• Shape: Omni-directional (radial isotropic)
• Polarization: Linear
• Impedance: 50 ohms
• Avg Return Loss (dB): -8
• Avg VSWR: 2.5
• Max Gain (dBi) : 6.5
• Avg. Gain (dBi): 3.5
• RF connector: SMA (male)
• Temperature range: - 20°C to 70°C
• Shock: 40G at 10msek
• Thermal shock: - 20°C to 70°C (10 cycles)
• Dimensions (L/W/H): 173x62x9mm
• Weight: 54g
